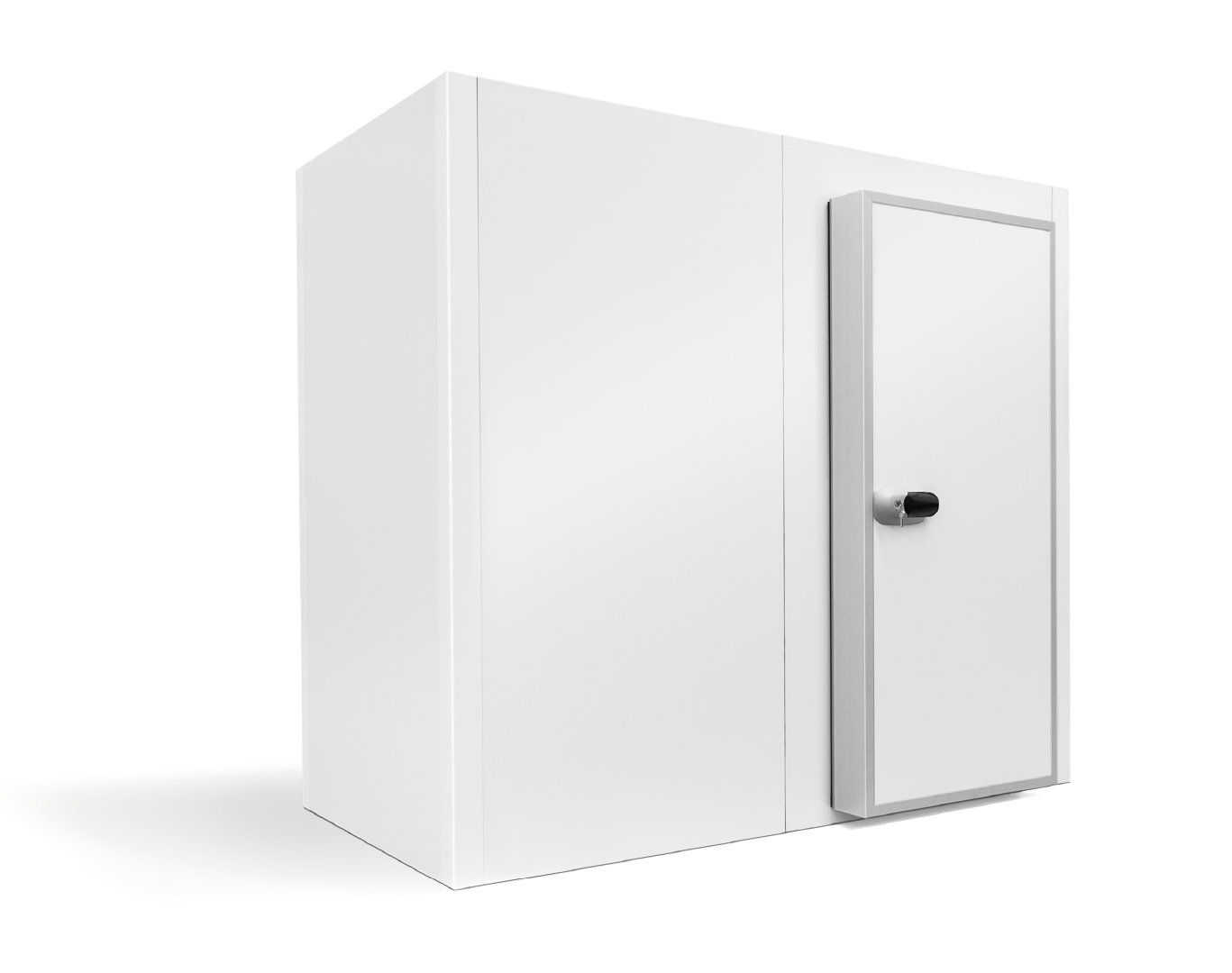

Optima

The new mini cold room concept.

The Optima Modular Cold Room is the ideal solution for small spaces. It was developed to improve and facilitate the work of both the installers and the end customer, so it has been equipped with innovative features. Its assembly system with 4 angles makes the assembly easier and faster without cutting the panel. It can be assembled from inside the cold room itself, taking advantage of every space in the project without requiring more space for its assembly.

We know that each installation has different needs; Optima cold rooms, manufactured to meet each of these needs, are the ideal solution for all facilities in the Horeca sector, such as hotels, restaurants, catering companies, and food retailers…, that only have a small space where they can conserve and cold store their products.

Optima – Cold Room

85mm - 105 mm - 120 mm

Flexible Height

Max 2,600 mm

Installation

Modular - 200 in 200 mm

Temperature

-40ºC to 15ºC

Lighting

LED

  • Certified product:
    • Euroclass Certification B-s2,d0 Reaction to Fire.
    • Class 3 slip/skid Resistance Rating Certificate for non-slip phenolic resin floors.
    • Class 1 slip/skid Resistance Rating Certificate for stainless steel floors.
  • Easy and quick assembly from inside the cold room.
  • Adaptable to small spaces.
  • Total modularity of 200 in 200 mm.
  • Possibility of dividing the cold room and having different temperatures.
  • Easy and quick cleaning thanks to its smooth finish.
  • Compatible with Coolblok modular shelves. Your perfect complement.

Product certified in:

  • Panel Features

    General specifications Optima panels:

    • Modules from 200 mm to 200 mm.
    • Thicknesses of 85, 105 and 120 mm.
    • Polyurethane (PUR) insulation injected at high pressure without CFCs with a density of 40 kg/m3 +/- 2.
    • Euroclass B-s2,d0 certificates (reaction to fire).
    • The connection between panels through a metal hook with anti-corrosion treatment.

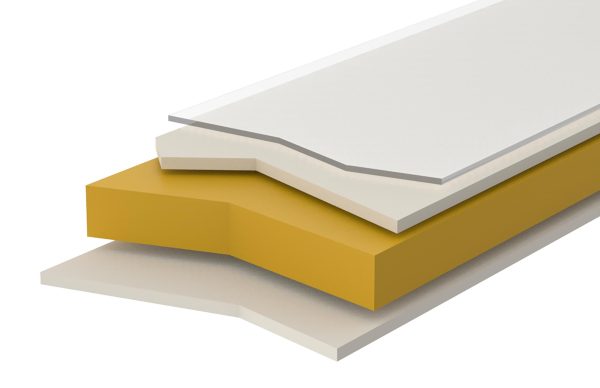

    Optima panel coating:

    Pre-lacquered galvanized steel sheet with 25-micron polyester lacquer. Thickness 0.5 mm and with protective film.

    • Smooth lacquered interior color Pirineo White / RAL 9010.
    • Exterior Options:
      • Smooth lacquered Exterior color Pirineo White / RAL 9010;
      • Optional: Antibacterial PVC
  • Optima without Floor

    Optima without floor features (Optima 85mm – Positive):

    For positive temperatures (conservation) at 4 outdoor heights: 2.03 m; 2.23 m; 2.43 m, and 2.63 m.

    It is supplied with a PVC U-coving for fixing to the floor to facilitate quick installation and support of the vertical panels. This coving includes a standard interior and exterior skirting, which ensures easy assembly and a perfect technical and aesthetic finish.

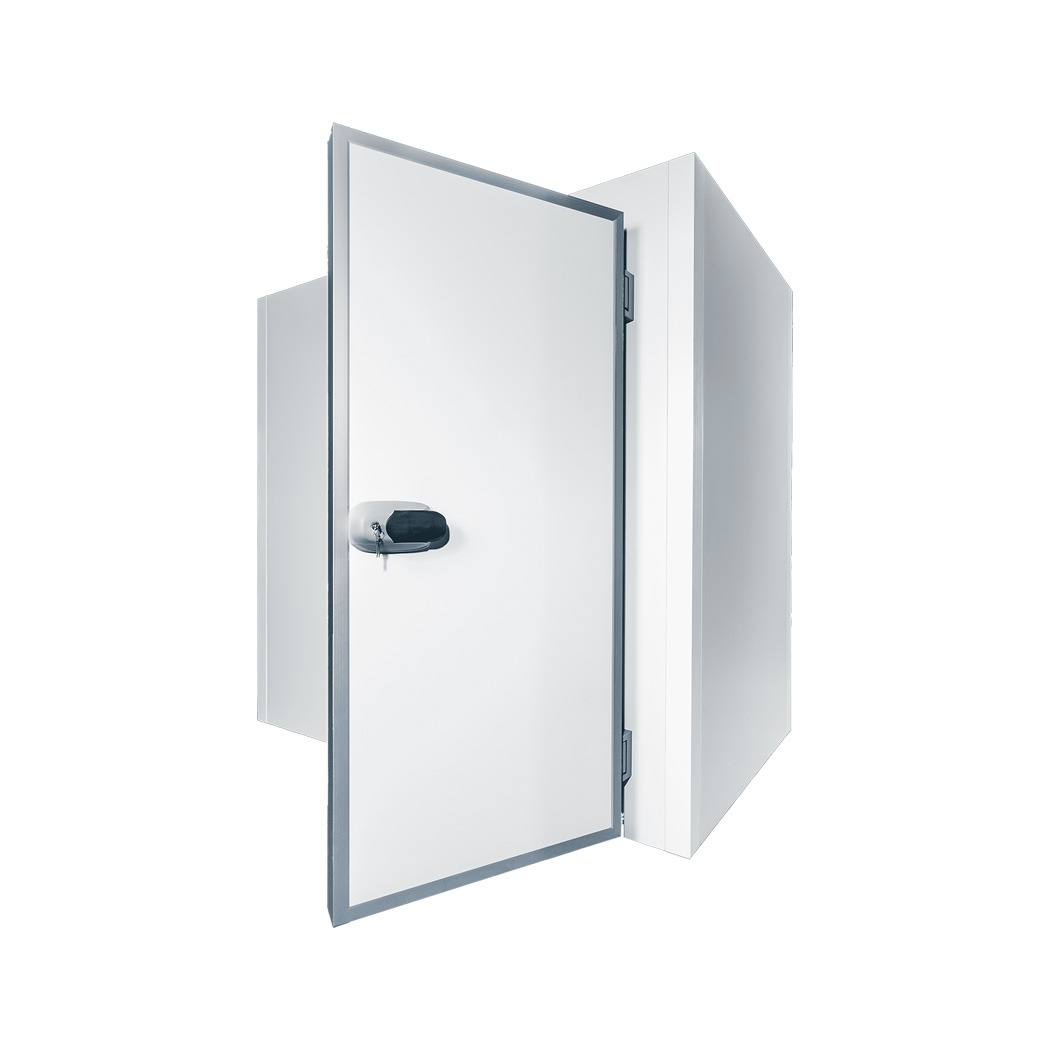

    In addition, you can choose from different sizes of standard pivoting doors, with the possibility of shifting the sheet on the door panel to adapt to the features of the installation and to be applied on panels 1,000 and 1,200 mm wide.

    All our pivoting doors have a key lock, interior opening and right or left opening direction.

  • Optima with Floor

    Optima with floor features (Optima 85mm, 105mm and 120mm – Positive and Negative):

    For positive (conservation) and negative (freezing) temperatures at 4 external heights: 2m (except 120 mm); 2.2m; 2.4m, and 2.3m.

    Standard floor:

    It has a resistant non-slip phenolic resin coating with a Class 3 slip/skid Resistance Rating Certificate (the same as required in outdoor swimming pool areas)

    Optional Floor:

    10 mm reinforced plywood (CTBX) coated with a non-slip stainless steel sheet on a 0.5 mm thick lacquered sheet glued to the inner side of the plywood. Class 1 slip/skid Resistance Rating Certificate.

    In addition, you can choose from different sizes of standard pivoting doors, with the possibility of shifting the sheet on the door panel to adapt to the characteristics of the installation and to be applied on panels 1,000 and 1,200 mm wide.

    All our pivoting doors have a key lock, interior opening and right or left opening direction. They have floor resistance.

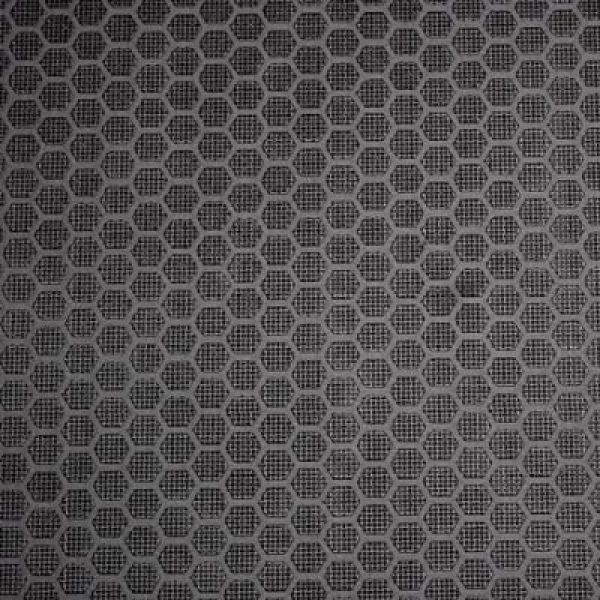

    Standard floor

    matrix_optima-suelo-estandar-v2

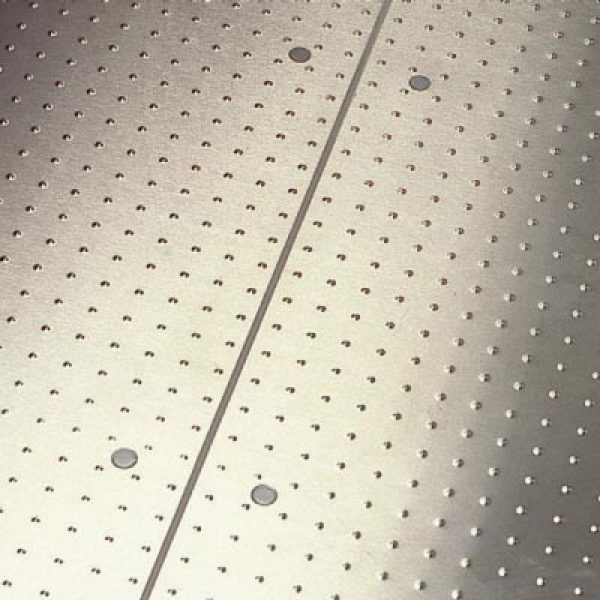

    Optional stainless steel floor

    matrix_optima-suelo-inox-opcional-v2
  • Accessories

    ACCESSORIES INCLUDED:

    • Sanitary coving throughout the perimeter of the cold room.
    • Balance valve for negative cold rooms.



    OPTIONAL ACCESSORIES:

    With Coldkit, you can complete and customize your cold room with the following options:

    • Replacement of pivot door by sliding door.
    • Additional installation of a pivoting door or a sliding door.
    • Installation of a semi-flush door (60 mm on the outside – 60 mm on the door frame) for the 120 mm thick model.
    • Division of the Optima cold room using a partition wall that can include doors.
    • LED lighting throughout the perimeter of the sanitary coving of the cold room with a system whose energy consumption is minimal and easy to clean, avoiding the accumulation of dirt on the lamps.
    • Installation of inner and outer skirtings for negative cold rooms:
    • Made of white PVC, with flexible lips, with a concave external finish. Fixing using hidden screws by pressure cap integrated into the coving by co-extrusion.
    • Installation of lamella curtains: Manufactured with transparent PVC lamellae 2 mm thick and 200 mm wide, with articulated polyethylene support. Self-tapping screws for installation are included.

    Lamellas Curtain

    Cortina-Lamas-Matrix-Optima-(1)

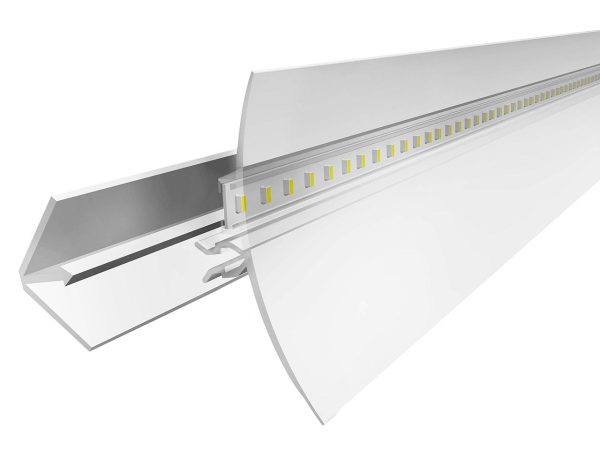

    LED lighting

    Iluminacion-led-Optima

    Valve

    Matrix-Optima-valvula-Accesorios-render

    Sanitary Coving

    MAtrix-Optimaperfil_sanitario

Benefits of being our customer?

You will have access to our cold room configurator and can design it according to your needs with all its accessories, including modular shelves, in just a few clicks and a few minutes.

configurador-camaras-coldkit

Technical specifications, measures, prices… contact us so that we can send you information.

Complete your Coldkit cold room with Coolblok modular shelves.
The perfect storage solution with food hygiene certifications.
